AM2302 Humicap digital temperature and humidity module is a digital output signal containing a calibrated temperature and humidity combined sensor. It uses a dedicated digital modules capture technology and the temperature and humidity sensor technology to ensure that products with high reliability and excellent long-term stability. Sensor includes a capacitive humidity sensing element and a high-precision temperature measurement devices, and with a high-performance 8-bit microcontroller connected. Therefore, the product has excellent quality, fast response, anti-interference ability, high cost and other advantages. Ultra-small size, low power consumption, signal transmission distance up to 20 meters. Making it the best choice for all kinds of applications and even the most demanding applications.
Dimension: 40 x 23mm
Weight: 4g
Voltage: 5V
Port: digital two-way single bus
Temperature range: -40-80 °C ± 0.5 °C
Humidity: 20-90% RH ± 2% RH
- Hardware
|
|---|
Deze sensor heeft een redelijk trage updatetijd en zou niet vaker dan om de 2 seconden moeten worden afgevraagd.

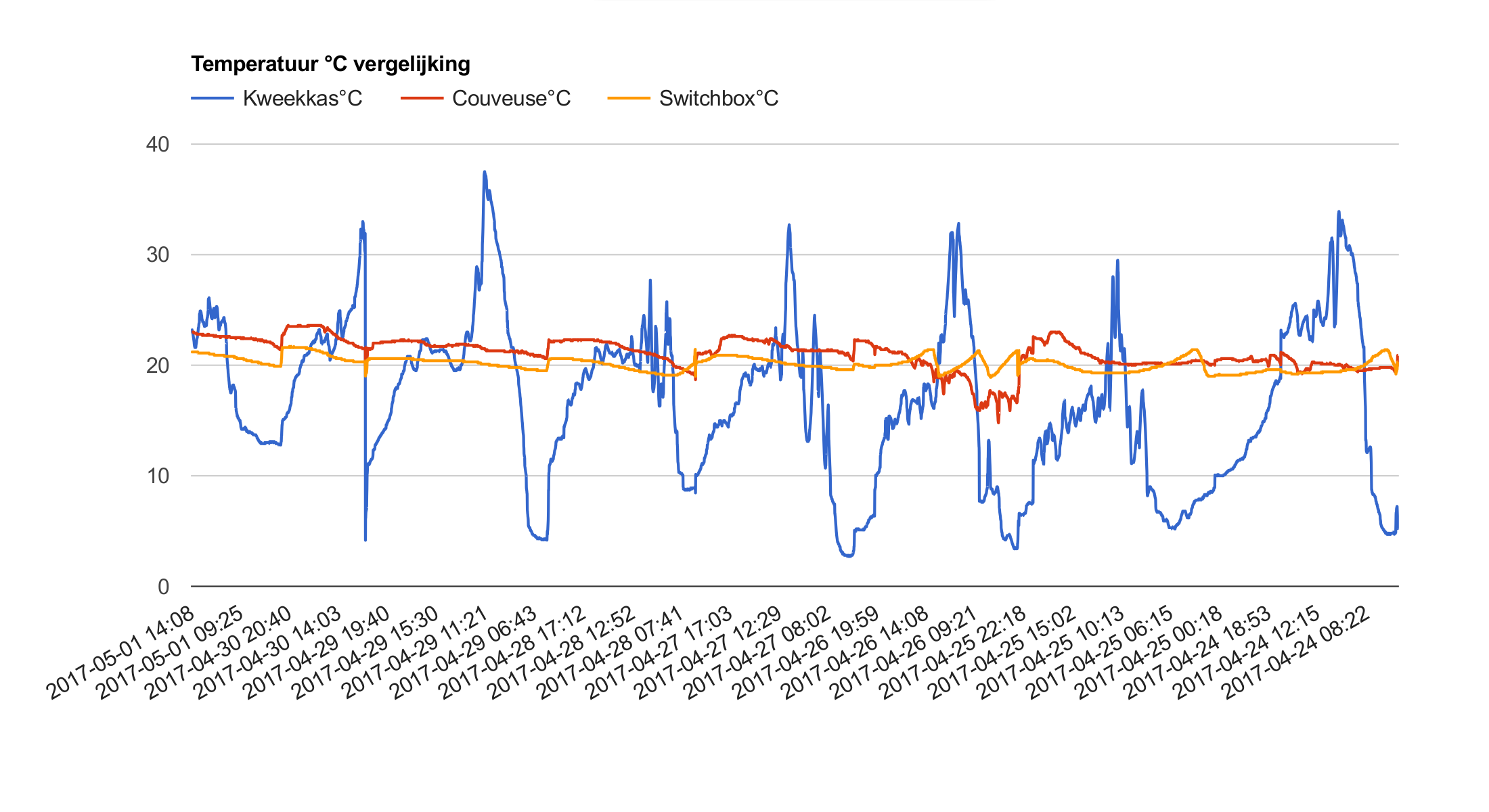

Deze sensor kan er niet tegen als hij te lang in een 100%+ luchtvochtigheid wordt gebruikt is gebleken in de couveuse. De luchtvochtigheid afdeling van de sensor maakt dan kortsluiting en geeft uitsluitend nog 99.9% luchtvochtigheid als antwoord.
Als je de losse sensor gebruikt dan moet je een 4,7kΩ of een 10kΩ weerstand monteren tussen de VCC en de DATA pin als optrekweerstand. Echter de DHT sensoren bevatten al een optrekweerstand (info).
|
- Bibliotheken
|
|---|
Om sketches te kunnen maken met deze sensor is het noodzakelijk om 2 libraries (bibliotheken) te installeren in de IDE die niet standaard wordt geïnstalleerd.
- Adafruit Unified Sensor by Adafruit
De ondergenoemde DHT library werkt enkel indien ook de Adafruit sensor abstraction layer is geïnstalleerd. De installatie kan vanuit de IDE via Tools / Manage Libraries.. Zoek naar Adafruit Unified Sensor by Adafruit en druk vervolgens op de button install (github}.
- DHT sensor library by Adafruit
De installatie kan vanuit de IDE via Tools / Manage Libraries.. Zoek naar DHT sensor library en selecteer de DHT sensor library by Adafruit. Druk vervolgens op de button install. Vanaf nu kunt u de sensor in uw sketches gebruiken (github). |
