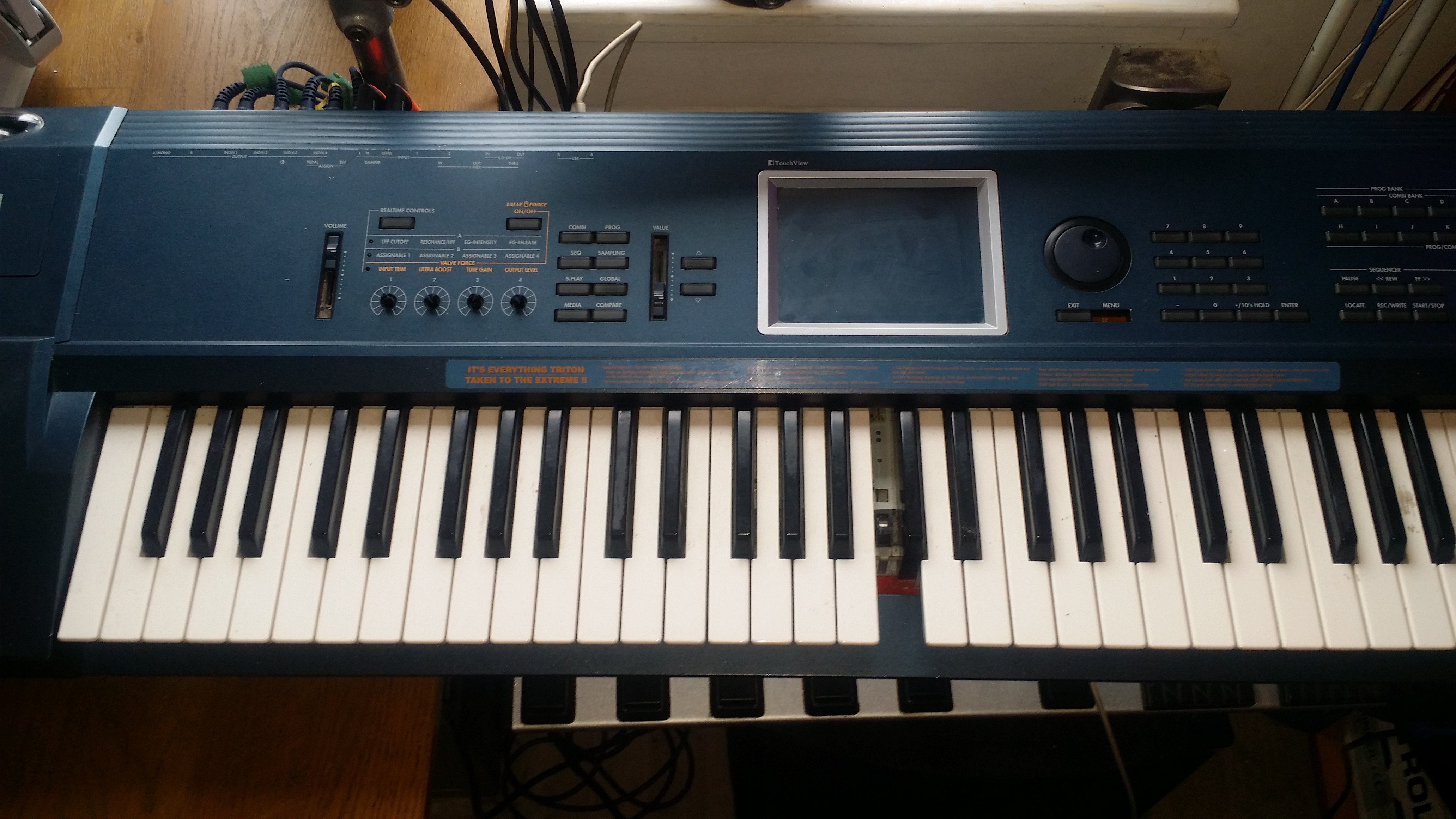

If ordering new keys be sure to know the very exact model of your keyboard, since Korg is using keystrips of other vendors, depending per model. This board is using Yamaha keystrips. The keyboard is constructed upside down, so destructing it must be done upside down as well.
- Verwijder de 3 SIM kaarten. De achterste kaart is nummer 1. Ze moeten met het uitspaarsel naar links worden gemonteerd.
- Verwijder de geheugenkaart achteruit.
- Verwijder eerst de 2 schroeven van het kleine plaatje en daarmee het kleine plaatje.

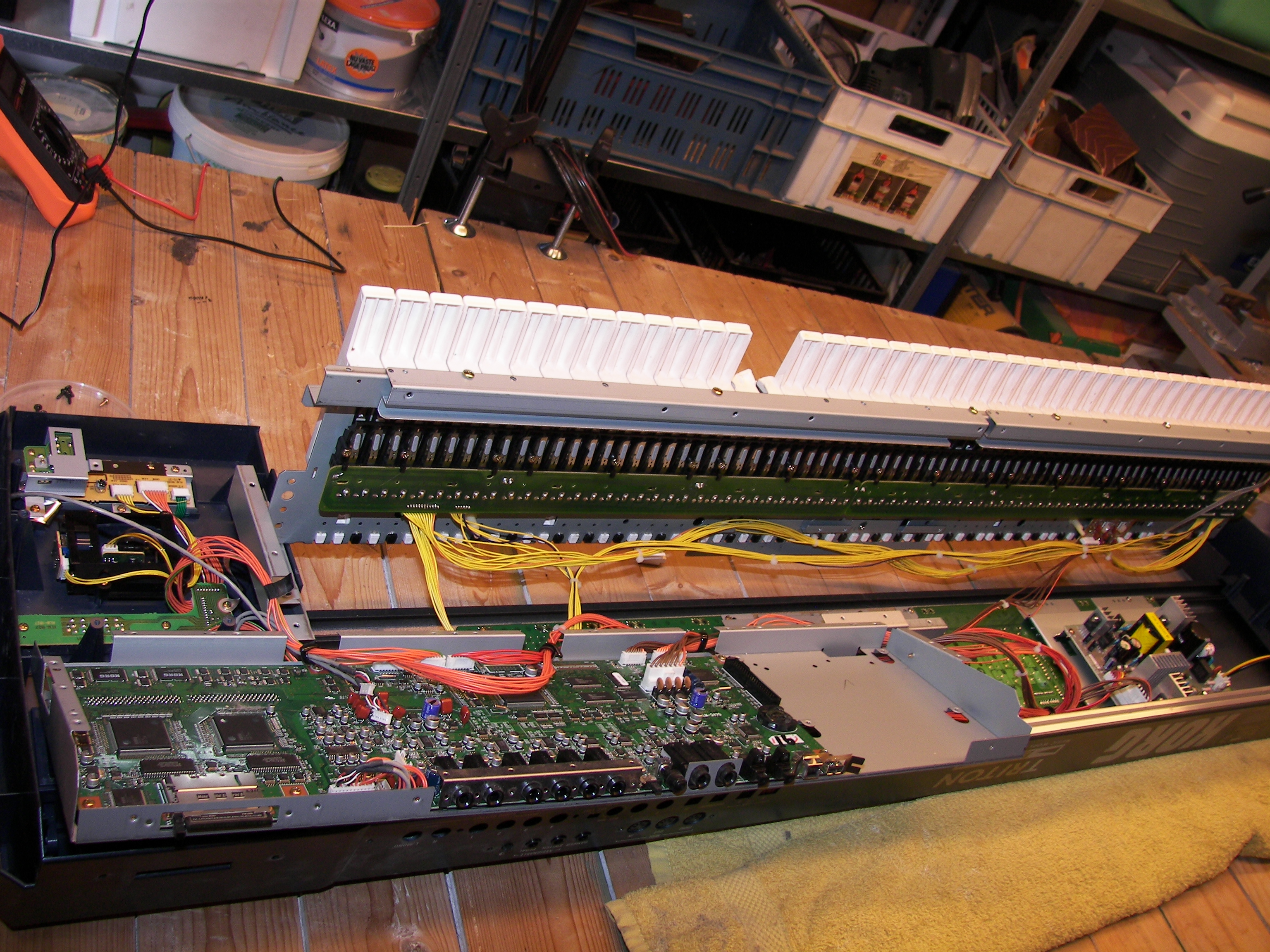

- Verwijder alle 31 bodemplaatschroeven (alles behalve de 4 voetjes) en neem de bodemplaat weg.
- Verwijder het plaatje met connectoren 3 schroeven uit het chassis en 7 uit de achterkant. Dit interface plaatje hoeft niet te worden verwijderd maar wel iets verplaatst
- Nu kan de plaat met toetsen worden losgeschroefd (5 grote koperen schroeven, 2 aan de ene kant en 3 aan de andere kant) en iets worden opgeschoven.
- Het voorfrontje is nu bereikbaar en de 3 kleine zwarte schroeven kunnen worden verwijderd.
- Verwijder de witte kunststof strip. De gewenste toetsen kunnen er nu simpel uitgeschoven worden. Er komt ook het metalen veerplaatje mee. Bestel nieuwe toets.
- Maak de connector naar de tube los en leg de bak opzij.
- Verwijder de 4 kleine koperen schroeven uit de bodemplaat van de voedingsplaat. De voedingsplaat mag gewoon met zijn 5 koperen schroeven vast blijven zitten op de bodemplaat. Maak de 220Vac los en leg de voedingsprint opzij.
- Vergeet niet de witte kunststof strip omhoog te schuiven. Nu zitten alle toetsen los.
