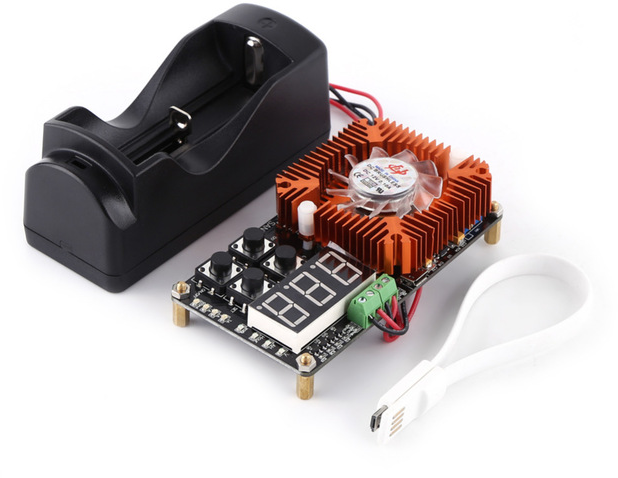

| Step |
Action |
LED |
| |
Remove USB-power connection. |
all off |
| |
Remove any battery inserted. |
all off |
| This is the starting postion of the procedure. |
| 1 |
Connect USB power. If you do nothing it will shut doen in 10 seconds. |
green3 red4 |
| 2 |
Insert a fully loaded battery. Mind the polarity. The display shows the actual battery voltage. |
green3 red4 |
From here on you can take either of 2 roads:
- Press SET: start making settings (goto 3).
- Press ON/OFF: start discharging (goto 9).
|
| We are now standby position 1: Make settings |
| 3 |

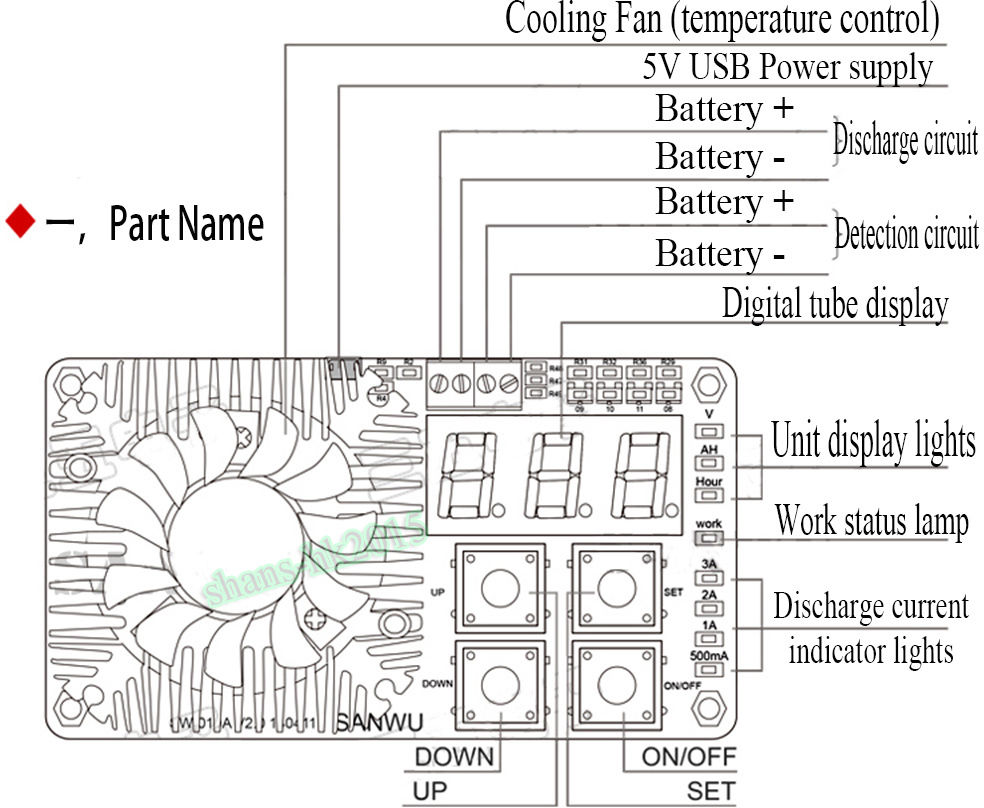

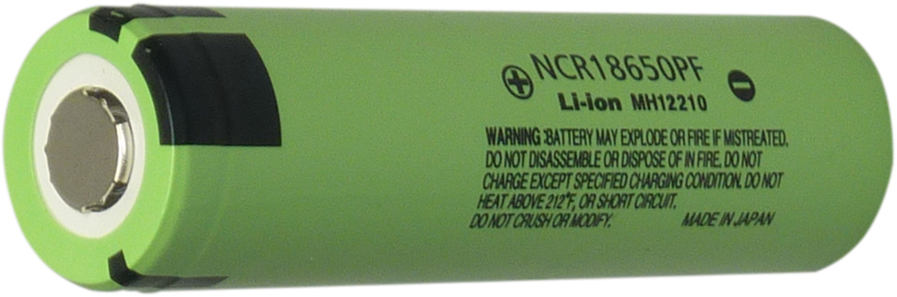

Press the Set button. The leftmost digit will start blinking. Set the Voltage lowest discharge level to 3 by pressing the up and down keys. After power up the discharcher defaults to a value of 3.00Volts which is perfectly suitable for a 18650. |
green3 red4 |
| 4 |
Press the Set button. Now the middle digit will be blinking. Set this one to zero. |
green3 red4 |
| 5 |
Press the Set button. The rightmost digit will start blinking. Set this digit also to zero. |
green3 red4 |
| 6 |
Press the Set button. Now a green led will blink, indicating the discharge current that will be used. By using the up dan down key you can cycle through 4 values: 0,5, 1, 2 and 3A. 3A is faster then 2 but it is also the hottest and least accurate. I choose 1A for easier calculation as well. |
green changes red4 |
| 7 |
Press the Set button. Congratulations: You have just finished the cycle of checking and setting the discharge system settings. The leftmost digit will blink again. |
green1 red4 |
| 8 |
Press the On/Off button. This will save your data. These settings will be remembered the next power up. The digits will show the actual battery voltage again. |
green1 red4 |
| We are now standby position 2: Start discharging. |
|---|
| 9 |
Press the On/Off button. This will start discharging your battery. The display shows the actual voltage. |
green1 red4 flashing werkstatus |
| 10 |
Press the Up button while discharging. This will show the time in minutes elapsed and then the current counted and then the actual voltage again. |
green1 red4 flashing werkstatus |
| 11 |
Buzzer beeps when ready. Press the Up button to show the elapsed time in minutes and then the current counted and then the actual voltage again. This completes the loop. |
green1 red4 werkstatus=on |
| 12 |
The batterry will be charged up till 3.9 Vdc. This is enough for safe storage. |
green1 red4 werkstatus=on |
| 13 |
Keep on/off button pressed until beep sounds. This clears the memory. Now the battery can be removed, and the power disconnected. |
green1 red4 werkstatus=on |
